Tenda Base Station Poe B6 N300 5Ghz 2 Antennas Outdoor
zoom_out_map
chevron_left chevron_right

Tenda Base Station Poe B6 N300 5Ghz 2 Antennas Outdoor

-Wireless: N300Mbps
-Interface: 1*10/100Mbps Ethernet Port
-Antenna: 2x RP-SMA
-Frequency: 5 GHz

-Deployment: Pole Mount
-Working Modes: AP/Station/WISP/P2MP/WDS Repeater/Router
-Power supply: 24V0.5A Passive PoE

Create Account To View Prices!

By buying this product you can collect up to 56 loyalty points. Your cart will total 56 points that can be converted into a voucher of $0.56.




Best Price Guaranteed



Delivery all over Lebanon



Daily Updated Website

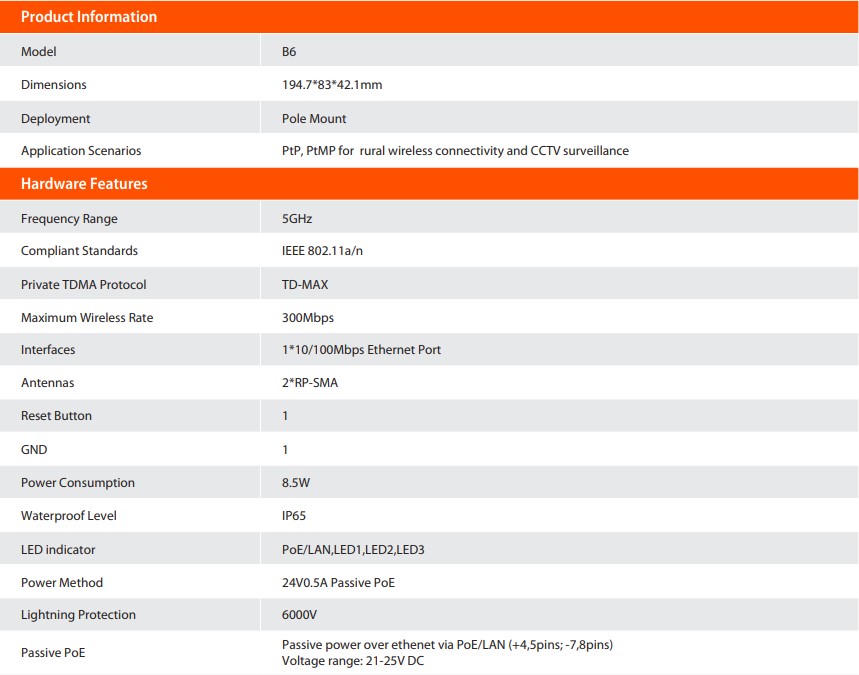

Model B6
Dimension 190*84*37mm
Deployment Pole Mount
Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Frequency Range 5GHz
Compliant Standards IEEE 802.11a/n
Maximum Wireless Rate 300Mbps
Interfaces 1*10/100Mbps Ethernet Port
Antenna 2*RP-SMA Connector
Antennas Gain /
Antenna Beamwidth /
GND 1*GND
Reset Button 1*Reset Button
Power Consumption 8.5W
Waterproof Level IP65
LED Indicator Power, PoE/LAN,LED1,LED2,LED3
Power Method 24V0.5A Passive PoE
Lightning Protection 6000V
Passive PoE Passive power over ethenet via PoE/LAN ( ✚4,5pins
-7,8pins) Voltage range: 21-25V DC

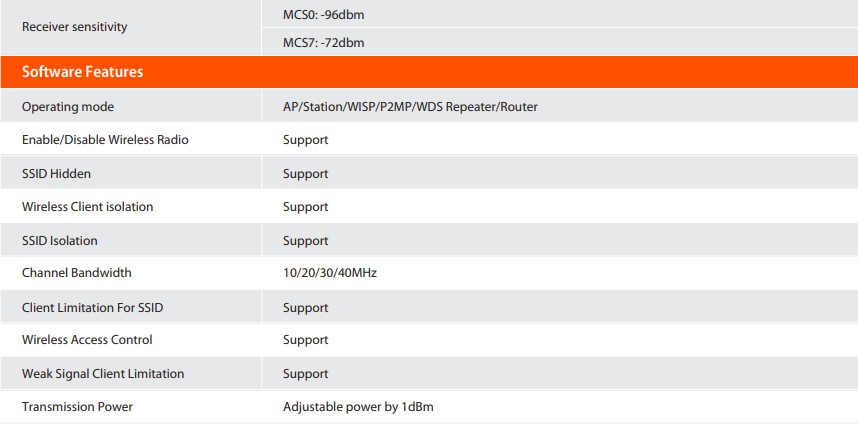

Reception Sensitivity 11a 6Mbps -96dBm±1.5dBm
11n MCS0: -96±1.5dBm
11n MCS7: -72±1.5dBm
TDMA Support
Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio Support
SSID Hidden Support
Wireless Client isolation Support
SSID Isolation Support
Channel Bandwidth 10/20/30/40MHz
Channel Shift Support
Wireless Access Control Support
Weak Signal Client Limitation Support
Transmission Power Adjustable power by 1dBm

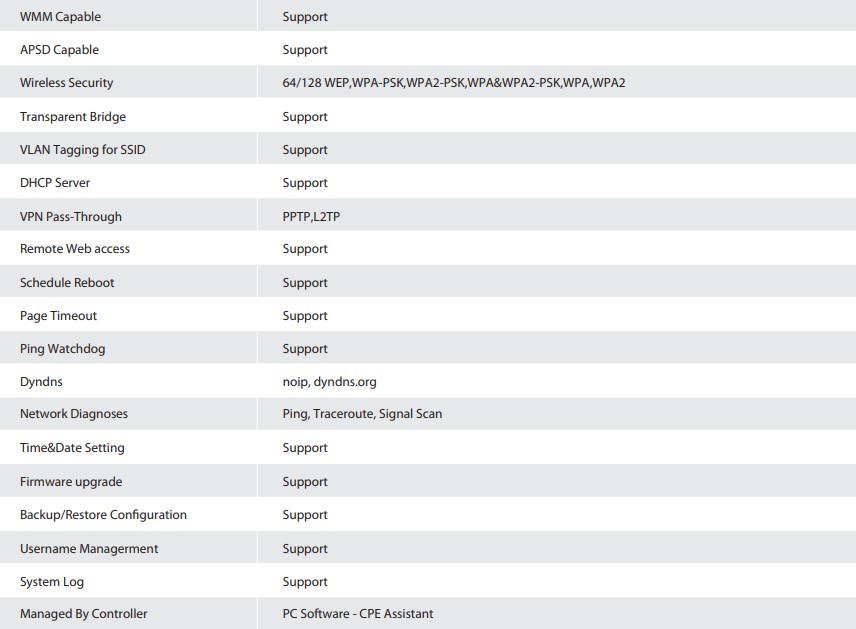

WMM Capable Support
APSD Capable Support
Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Transparent Bridge Support
VLAN Tagging for SSID Support
DHCP Server Support
VPN Pass-Through PPTP,L2TP
Remote Web access Support
Schedule Reboot Support
Page Timeout Support
Ping Watchdog Support
Dyndns noip, dyndns.org
Network Diagnoses Ping, Traceroute, Signal Scan
Time&Date Setting Support
Firmware upgrade Support
Backup/Restore Configuration Support
Username Managerment Support
System Logs Support
Managed By Controller PC Software CPE Assistant
Package Contents 1*5GHz 11n 300Mbps wireless basestation B6
1*PoE Power Adapter
1*Power cord
1*Quick Installation Guide
Operation Temperature -30℃ ~ 60℃
Storage Temperature -40℃ ~ 70℃
Operating Humidity 10%~90% non-condensing
Storage Humidity 10%~90% non-condensing
Default login IP 192.168.2.1
Default Login Username admin
Default Login Password admin
Certification FCC/CE/RoHS
NETWORK l95
Data sheet
Frequency
5Ghz
Wireless
Wifi 4
Antenna
2
Data Rate
300Mbps
Speed
10/100
Power
POE
