Board-X Ups Offline 3000Va 1800W Internal Battery 4X 12V/9Ah
-Power: 3000VA
-Output: Simulated Sine Wave
-Frequency: 50/60HZ
-Voltage: 220V
-Battery: 4x 12V/9AH Sealed Inside
By buying this product you can collect up to 180 loyalty points. Your cart will total 180 points that can be converted into a voucher of $1.80.
Best Price Guaranteed
Delivery all over Lebanon
Daily Updated Website

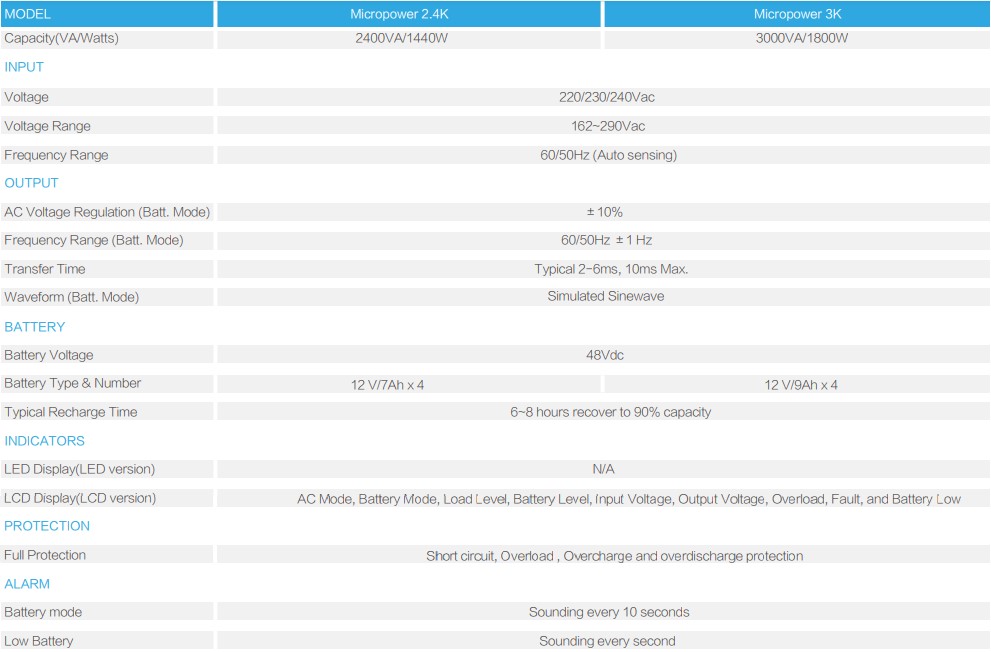

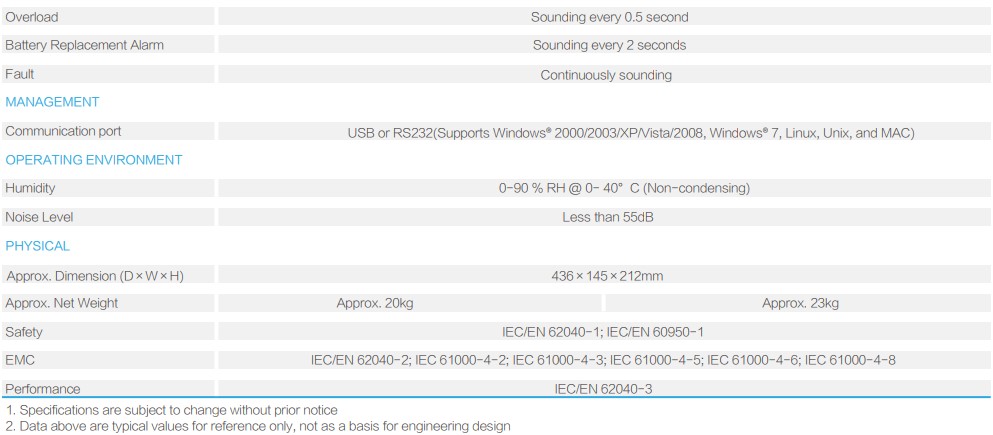

Board-X Ups Offline 3000Va 1800W Internal Battery 4X 12V/9Ah
|
Capacity (VA/Watts)
|
3000 / 1800 |
|
INPUT
|
|
|
Nominal Input Voltage
|
110/120Vac or 220/230/240 Vac |
|
Operating Voltage Range
|
81-145Vac/162-290 Vac |
|
Operating Frequency Range
|
50/60 Hz (1±10%) |
|
OUTPUT
|
|
|
Output Voltage range (Batt. Mode)
|
Simulated Sinewave at nominal voltage ±10% |
|
Frequency Range (Batt. Mode)
|
50 Hz or 60 Hz ± 1 Hz |
|
Transfer Time
|
Typical 2-6 ms, 10ms max. |
|
BATTERY
|
|
|
Battery Type & Number
|
12V/9Ah x 4 |
|
Typical Recharge Time
|
6-8 hours ( To 90% capacity) |
|
PROTECTION
|
|
|
Full Protection
|
Overload and overcharge protection |
|
INDICATORS
|
|
|
Indicators
|
AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, Battery Low |
|
ALARM
|
|
|
Battery Mode
|
Sounding every 10 seconds |
|
Battery Low
|
Sounding every second |
|
Overload
|
Sounding every 0.5 second |
|
Battery Replacement Alarm
|
Sounding every 2 seconds |
|
Fault
|
Continuously sounding |
|
Management
|
|
| USB & RS-232 port(Optional) | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC |
|
Environment
|
|
|
Operating Temperature
|
0- 40°C |
|
Humidity Range
|
0-95 % (Non-condensing) |
|
Noise Level
|
<40db (1 meter from surface) |
|
PHYSICAL
|
|
|
Dimension, W x D x H (mm)
|
144×432.5×207 |
|
Net Weight (kg)
|
23 |
|
STANDARDS
|
|
|
Safety
|
IEC/EN62040-1;IEC/EN60950-1 |
|
EMC
|
IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8 |
UPS l01
Data sheet
- Output Capacity
- 1800W
- Battery
- Internal
